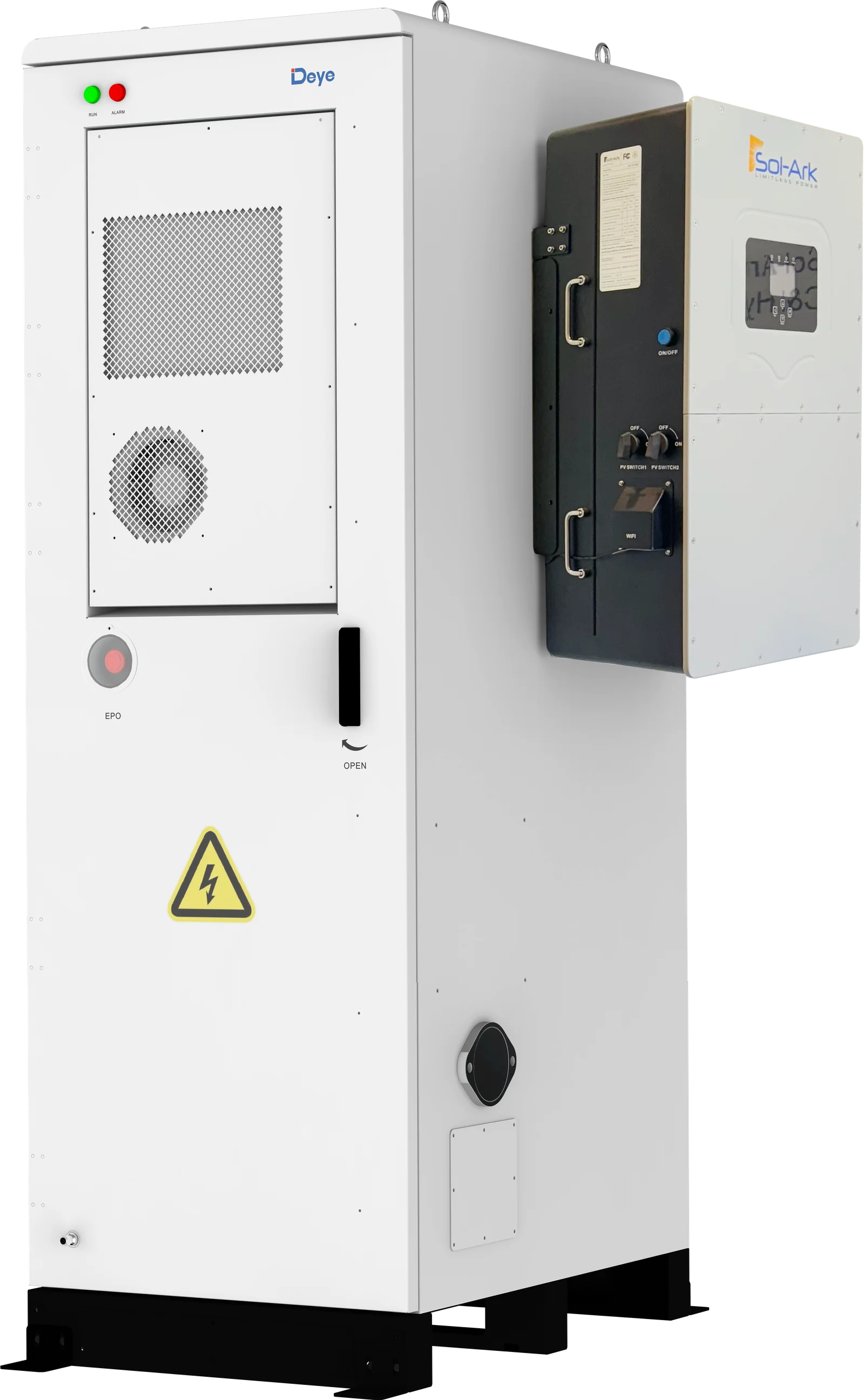

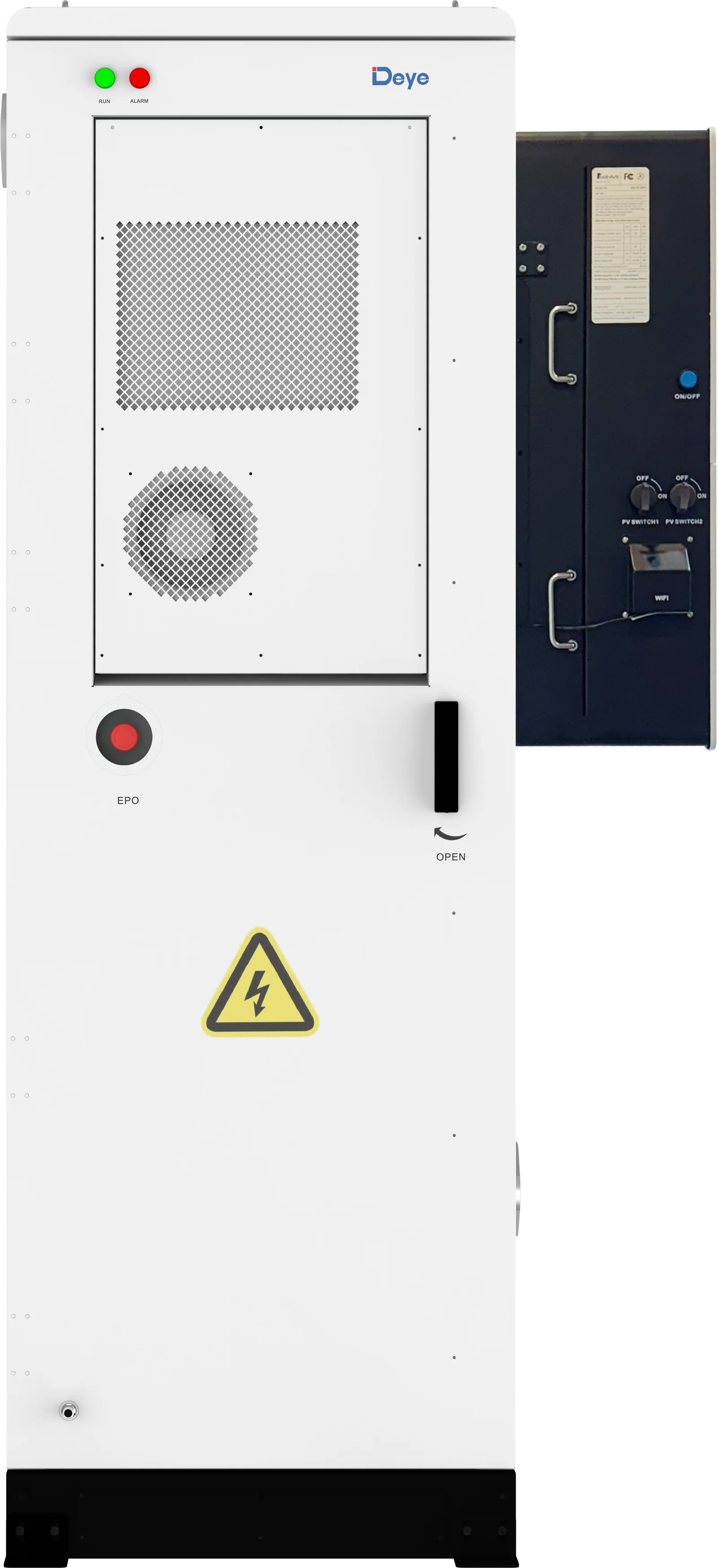

Deye FL/FH 60kWh LFP Battery Cabinet – High-Capacity, Scalable Energy Storage, compatible with SOL-ARK 30KW/60KW inverter

Description

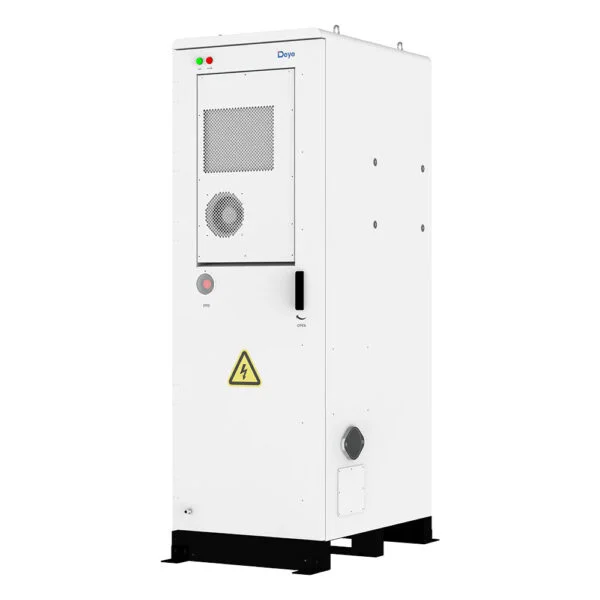

Deye FL/FH 60kWh LFP Battery Cabinet – High-Capacity, Scalable Energy Storage

The Deye FL/FH 60kWh battery cabinet is a powerful, integrated energy storage solution designed to support both residential and commercial applications. Built with high-performance lithium iron phosphate (LiFePO₄) cells, this cabinet delivers outstanding safety, long cycle life, and flexible compatibility with a wide range of hybrid inverters—including Deye’s own line as well as other leading brands.

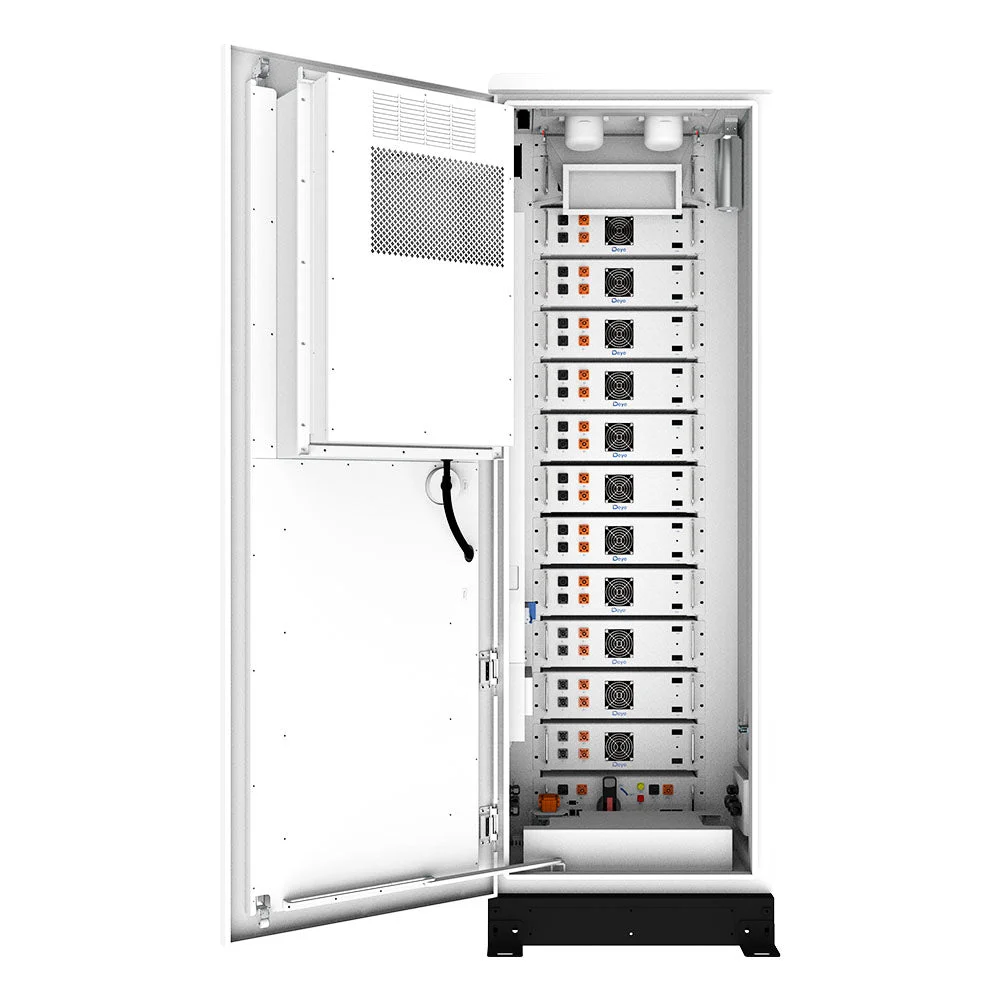

This pre-configured cabinet includes 12 modules of 5.12kWh each, along with built-in BMS, fuse protection, DC breaker, and communication interface—delivering plug-and-play performance and easy installation.

⚙️ Key Features:

• Total Capacity: 60kWh (12× 5.12kWh modules)

• Usable Capacity: ~54kWh (90% DoD)

• Chemistry: Lithium Iron Phosphate (LFP) – known for safety and longevity

• Voltage Range: 192V–288V (nominal 256V)

• Modular Design: Stackable internal modules in a single outdoor-rated cabinet

• BMS Integration: Built-in intelligent battery management system

• Communication: CAN/RS485 for direct communication with compatible hybrid inverters

• Enclosure: NEMA 3R / IP54 cabinet, suitable for outdoor installations

• Certifications: UL1973, UL9540A, UN38.3

• Cycle Life: >6000 cycles @ 90% DoD

• Warranty: 10 years

✅ Applications:

• Residential Whole-Home Backup

• Commercial Peak Shaving & Load Shifting

• Microgrid or Off-Grid Storage

• EV Charging Buffer Systems

• Solar Self-Consumption Optimization

🏡 Ideal For:

• Large residential homes with high energy demand

• Small businesses and light commercial facilities

• Customers in areas with grid instability or time-of-use rates

• Installers seeking standardized, scalable battery cabinet solutions
